Level 3 Step-Through

No review yet. Write Review
$1,850.00
$1,850.00
Shipping calculated at checkout.

Vendor : Aventon

Product Type : Electric Bicycle

Sku : 10287

Sorry! Our Level 3 Step-Through is currently sold out online! In-store units may still be available. Call us at (346) 806-6701 to ask about availability!

Want to be notified when it becomes available online again? Simply give us your email and we'll send you a message when it does.

SHIPPING AVAILABLE
If you're out of our area, we can ship bikes directly to your front door. Please call us at (713) 816-1390 to check on availability and shipping times!
FREE TEST RIDES
If you are located in the Houston area, we recommend coming for free test rides and a professional bike fitting.

What does "Texas State Law Compliant" mean?

Understand the rules of the road before you ride.

Click Here to Find Out

Special financing available through Synchrony. See if you Pre-Qualify here.

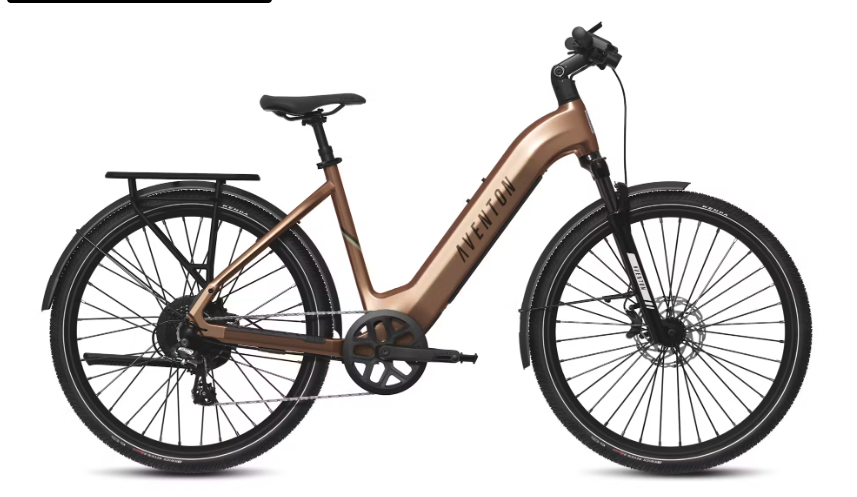

Aventon Level 3 Step-Through Smart Commuter E-Bike

Elevate your daily routine with the Aventon Level 3 Step-Through, a high-end urban commuter engineered to balance top-tier rider safety with premium comfort. Built around a sleek, gravity-cast aluminum frame with a low step-through crossbar, this next-generation utility e-bike introduces Magura hydraulic disc brakes and an advanced Aventon Control Unit (ACU) featuring live 4G/GPS tracking. Designed for effortless mounting and smooth handling, the Level 3 turns bumpy city streets and long-distance cross-town commutes into an elegant, stress-free ride.

Key Features

  • Aventon Control Unit (ACU) 4G/GPS Security: Experience ultimate peace of mind when parking in urban areas. The built-in ACU smart module provides live GPS location tracking via 4G cellular networks, motion-detection alarms, geofencing parameters, a password-protected mechanical rear wheel lock, and remote motor deactivation.

  • Pro-Tier Magura Hydraulic Braking: For the first time in its class, the Level 3 features premium Magura 2-piston hydraulic brakes and levers paired with thick 180mm rotors. Enjoy effortless modulation and crisp, elite-tier stopping power under any weather condition.

  • Ride Tune™ Performance Customization: Powered by a highly sensitive, bottom-bracket torque sensor that mirrors your natural pedaling effort. Using the companion smart app, the Ride Tune™ integration lets you customize the power curves and response time of each pedal assist mode to perfectly match your riding style.

  • Upgraded Drivetrain & Cadence Geometry: Built with a more aggressive 48T front chainring paired to a Shimano Altus 8-speed drivetrain. This updated layout prevents "ghost pedaling" at top speeds, optimizing your leg cadence on fast straightaways and hills.

  • Dual-Damping Luxury Comfort: Float over potholes and pavement transitions. The Level 3 features an 80mm travel adjustable suspension fork with hydraulic lockout, paired with an active suspension seatpost offering 50mm of built-in preload cushioning.

  • Integrated Signaling & Turn Lights: Seamlessly stay visible to traffic. Signature high-output LED tail lights are cleanly embedded directly into the rear seat stays, featuring handlebar-controlled turn signals that automatically turn off after 15–20 seconds.

Technical Specifications

Performance, Electronics & Smart Tech

Attribute Specification
Motor 36V 500W Sustained Brushless Rear Hub (864W Peak Boost Mode)
Torque Output 60 N.m (Optimized for quick stop-and-go acceleration)
Battery System 36V 20Ah (733Wh) Removable Internal Lithium-Ion with LG 21700 Cells
Connected Tech Built-in 4G LTE/GPS module, Keyless Battery Ejection, Auto-Lock, Geofencing
Top Speed & Class Ships as Class 2 (20 MPH); Unlockable via App to Class 3 (28 MPH)
Max Mileage Range Up to 70 Miles on a single charge using customized Eco modes
Safety Certifications Fully Certified and Tested to UL 2849 (System) & UL 2271 (Battery)
Display Panel Aventon BC280 Easy-Read Backlit LCD Smart Color Screen

Chassis & Componentry

Attribute Specification
Frame Material 6061 Aluminum, Rugged Gravity-Cast Front Triangle
Front Fork 80mm Travel Coil Suspension Fork with Preload & Lockout
Brake Group Magura AT-2 / Tektro HD-E3520 2-Piston Hydraulic Disc Brakes
Rotors Magura MDR-A / Tektro 180mm 6-Bolt Front & Rear Rotors
Drivetrain Shimano Altus RD-M310 8-Speed Derailleur & Trigger Shifter
Gearing / Chainwheel 48T Chainring with a Shimano 12-32T 8-Speed Cassette Cluster
Wheelset & Tires Double-Wall Aluminum Rims with Kenda Kwick Seven-5 Sport 27.5" x 2.2" Tires
Cable Routing Clean Internal Route fed straight through the Headset assembly

Sizing, Geometry & Capacities

  • Regular Step-Thru Fitment: 4'11" – 5'7"

  • Large Step-Thru Fitment: 5'7" – 6'1"

  • Maximum Frame Payload Capacity: 330 lbs total weight limit

  • Rear Cargo Rack Limit: Heavy-duty structural rack with a 60 lbs capacity

  • Net Bike Weight: 67 lbs with battery installed

What's Included in the Box?

  • 1 x Aventon Level 3 Step-Through E-Bike Frame

  • 1 x Integrated Key-Locked 733Wh LG-Cell Lithium Battery

  • 1 x 42V 4A Intelligent Rapid Battery Charger (5-Hour Full Charge)

  • 1 x Heavy-Duty Integrated Rear Cargo Utility Rack

  • 2 x Protective Matching Full-Coverage Fenders

  • 1 x Core Component Assembly Tool Set & Owner's Manual Guidelines
