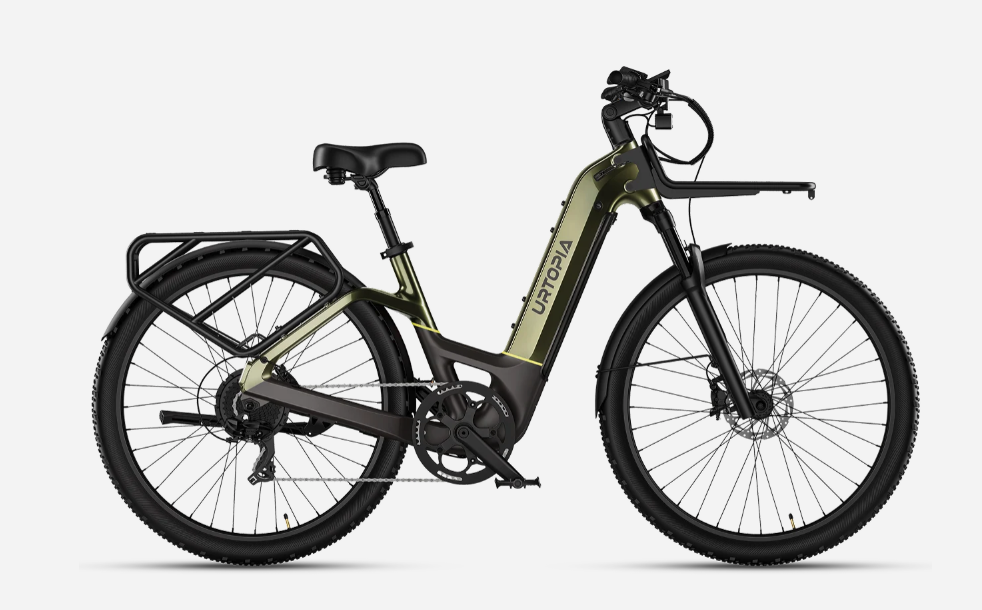

Carbon Atom

No review yet. Write Review
Regular price
$2,650.00
Regular price
Sale price
$2,650.00
Shipping calculated at checkout.

Vendor : URTOPIA

Product Type : Electric Bicycle

Sku : 10420

Sorry! Our Carbon Atom is currently sold out online! In-store units may still be available. Call us at (346) 806-6701 to ask about availability!

Want to be notified when it becomes available online again? Simply give us your email and we'll send you a message when it does.

SHIPPING AVAILABLE
If you're out of our area, we can ship bikes directly to your front door. Please call us at (713) 816-1390 to check on availability and shipping times!
FREE TEST RIDES
If you are located in the Houston area, we recommend coming for free test rides and a professional bike fitting.

What does "Texas State Law Compliant" mean?

Understand the rules of the road before you ride.

Click Here to Find Out

Special financing available through Synchrony. See if you Pre-Qualify here.

Here is a complete, POS/e-commerce-ready product description structured for Lightspeed:

Urtopia Carbon Atom E-Bike

Short Description

The Urtopia Carbon Atom is a premium "eSUV" electric bike engineered with a lightweight Toray® carbon fiber frame and a high-torque 750W motor. Built for everything from daily urban commuting to gravel trails and hill climbing, the Carbon Atom delivers an ultra-smooth ride with dual suspension (front fork and seatpost), an 835Wh long-range LG battery, responsive torque-sensing pedal assist, and integrated lighting.

Overview & Key Features

  • Ultra-Light Carbon Fiber Construction: Built with high-grade Toray® carbon fiber for a seamless, weld-free frame that naturally absorbs road vibrations while remaining exceptionally lightweight and durable.

  • High-Torque 750W Powerplant: Equipped with a 750W rear hub motor (1,250W peak) producing 90 Nm of torque, effortlessly handling steep inclines and heavy utility loads.

  • Extended Range Battery: High-capacity 835Wh removable LG battery provides up to 95 miles of range on a single charge with a fast 4-hour recharge time.

  • Intuitive Torque Sensor: Delivers smooth, instant pedal assist that dynamically matches pedaling effort without jerking or delay.

  • Dual Suspension Comfort: Features an 80mm travel front suspension fork with lockout paired with a 30mm suspension seatpost to smooth out bumps and rough terrain.

  • Shimano 8-Speed Drivetrain: Smooth, reliable gearing with a Shimano Acera 8-speed derailleur and trigger shifter for versatile riding across all gradients.

  • Integrated Safety & Tech: Bright 3.5" full-color LCD dashboard, high-output 100-lux front headlight, and an integrated rear light featuring active brake lights and turn signals.

  • All-Weather Stopping Power: High-performance hydraulic disc brakes ensure confident stopping in both wet and dry conditions.

  • Customizable Cockpit: 0–90° adjustable aluminum stem allows riders to easily switch between a relaxed upright cruising position and an aggressive, athletic stance.

Technical Specifications

Electronics & Motor System

  • Motor: 48V, 750W nominal (1,250W Peak), 90 Nm torque

  • Battery: 835Wh LG Li-ion (UL-2271 certified, removable)

  • Charger: 48V 4.5A Fast Charger (approx. 4 hours to 100%)

  • Pedal Assist: 4 Levels (Torque-sensing)

  • Throttle: Thumb throttle (up to 20 mph)

  • Top Speed: 20 mph default (Class 2), unlockable to 28 mph (Class 3)

  • Range: Up to 95 miles (dependent on rider weight, assist level, and terrain)

  • Display: 3.5-inch Color LCD Display

  • Lights: 100 Lux external front headlight; integrated tail light with brake indicator & turn signals

  • Water Resistance Rating: IP65

Frameset & Suspension

  • Frame: Toray® Carbon Fiber (Step-Through design)

  • Front Suspension: Suspension fork, 80mm travel with lockout

  • Seatpost: Aluminum suspension seatpost, 30mm travel

  • Stem: 0–90° adjustable angle, aluminum

  • Handlebar: Aluminum, Ø31.8mm, 700mm width

Drivetrain & Brakes

  • Rear Derailleur: Shimano ACERA 8-Speed

  • Shifter: 8-Speed Trigger Shifter

  • Chainring: 52T

  • Cassette: 12–32T, 8-Speed

  • Brakes: Hydraulic Disc Brakes

Wheels & Tires

  • Tires: Kenda 26" × 2.4", puncture-resistant casing

  • Rims: Aluminum alloy

Sizing & Capacity

  • Sizing: One Size (Recommended rider height: 5'3" – 6'3" / 160 cm – 190 cm)

  • Total Payload Capacity: 330 lbs (150 kg)

  • Bike Weight: ~58 lbs (without accessories)

  • Standover Height: 17.3" (440 mm)
