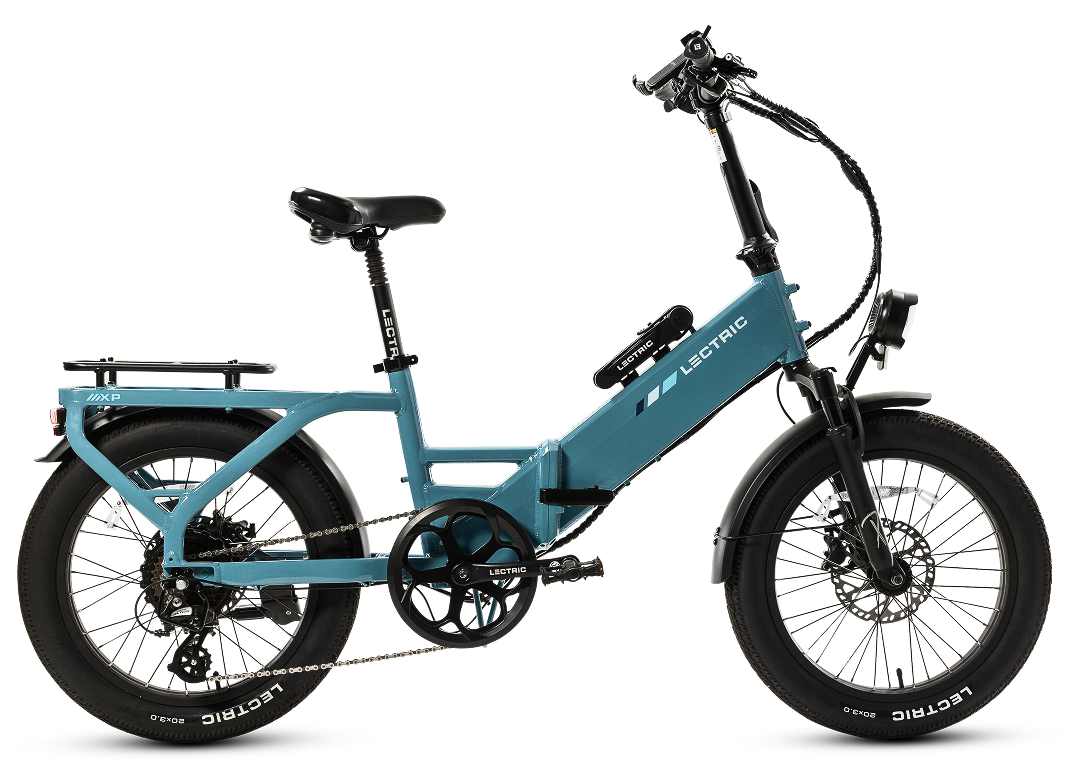

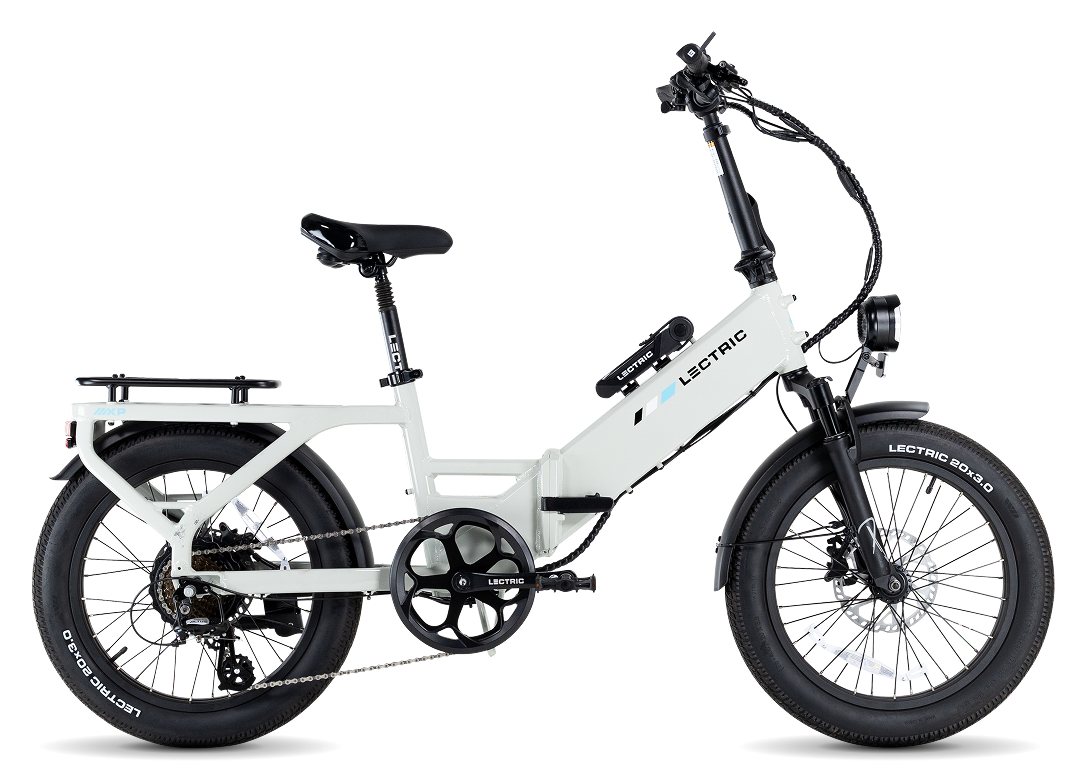

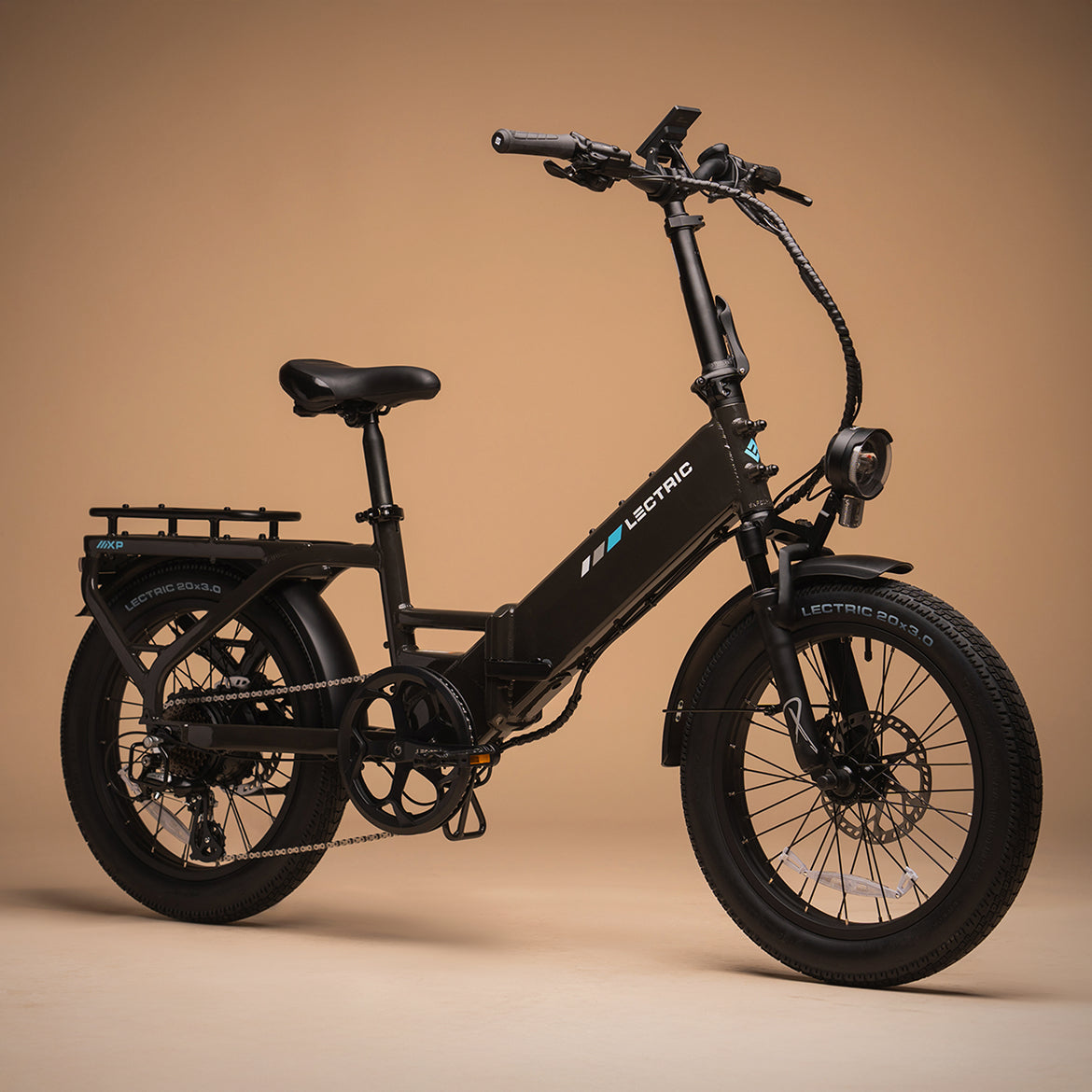

LECTRIC XP4 Step-Thru (750)

Lectric XP4 750 Step-Thru – Maximum Power Meets Ultimate Accessibility

The Lectric XP4 750 Step-Thru is the high-performance evolution of the industry-standard folding e-bike. By pairing a massive 750W motor (1310W peak) with a low-profile frame, this bike removes the barriers to entry without sacrificing an ounce of torque or top-end speed. It is specifically engineered for riders who want the easiest mounting experience possible but still need the "hill-crushing" capability of a full-sized utility bike.

Step-Thru vs. Step-Over: Education for the Ride

While both frames share the same powerful electronics, the physical design changes how you interact with the machine:

• The Mounting Advantage: A Step-Thru frame lacks the high top tube found on the Step-Over model. This means you don't have to swing your leg high over the rear of the bike—essential if you have a child seat, large basket, or heavy gear on the back rack that would otherwise block your movement.

• Stand-Over Comfort: At a stoplight, the Step-Thru allows you to stand comfortably with both feet flat on the ground while staying "inside" the frame. On a Step-Over, you're forced to lean the bike or straddle a high bar, which can be unstable on a 72-lb e-bike.

• Ride Feel: Step-Over frames are traditionally favored for maximum frame rigidity during aggressive off-road riding. However, the XP4 Step-Thru features a reinforced 6000-series aluminum frame that delivers a sturdy, stable ride that nearly matches its high-step counterpart while offering vastly superior convenience.

High-Performance Upgrades

• Stealth M24 Power: The upgraded 750W motor delivers 85Nm of torque, providing quicker acceleration and better climbing than the standard 500W models.

• Advanced Torque Sensor: Unlike basic cadence sensors that act like an on/off switch, the XP4’s proprietary torque sensor measures how hard you are pedaling and provides motor assist in real-time, resulting in a natural, intuitive feel.

• Long-Range 17.5Ah Battery: Go further with a high-capacity 840Wh battery that pushes your adventures up to 85 miles on a single charge.

• Next-Gen Safety & Tech: Stop with confidence using 602 Hydraulic Brakes with extra-thick rotors. The bike also features a full-color TFT display, integrated turn signals, and a brake-activated rear light for maximum visibility.

Technical Specifications

• Motor: 750W Sustained (1310W Peak) Stealth M24 Hub

• Battery: 48V, 17.5Ah (840Wh) Lithium-Ion (UL 2271 Certified)

• Range: Up to 85 Miles

• Top Speed: 28 MPH (Class 1, 2, or 3 settings)

• Brakes: Hydraulic Disc Brakes (180mm x 2.3mm thick rotors)

• Tires: 20" x 3" Mixed-Terrain Puncture-Resistant with Slime

• Payload Capacity: 330 lbs (150 lbs on integrated rear rack)

• Weight: ~72 lbs with battery

The XP4 Step-Thru is built for the rider who wants no compromises—maximum accessibility for daily utility combined with the most powerful motor and battery kit Lectric offers.
